4418

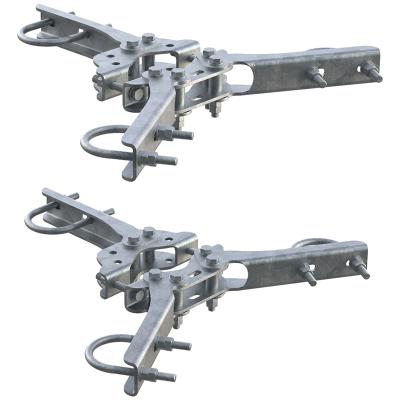

3-Sector Antenna Mount

About the Product

Designed to mount three large antennas with equal spacing between each offset member.

Order Information

Please use this link for regional contact information, quoting article number 4418.

CAD-Block

To request CAD-Block for this kit, please e-mail
design@mafigroup.com

Technical Information


Parent member

Circular:
76.1 - 114.3 mm
3 - 4.5"

Offset member

Circular:
60.3 - 76.1 mm
2.4 - 3"

Performance

Ultimate transient man-load: 2.4 kN
Max. resisting torque per single bracket: 462 Nm
Load capacity: 60 kg (132 lb)
Minimum offset: 264 mm (10.4")
Maximum offset: 286 mm (11.3")
