Corner Wall Mount

About the Product

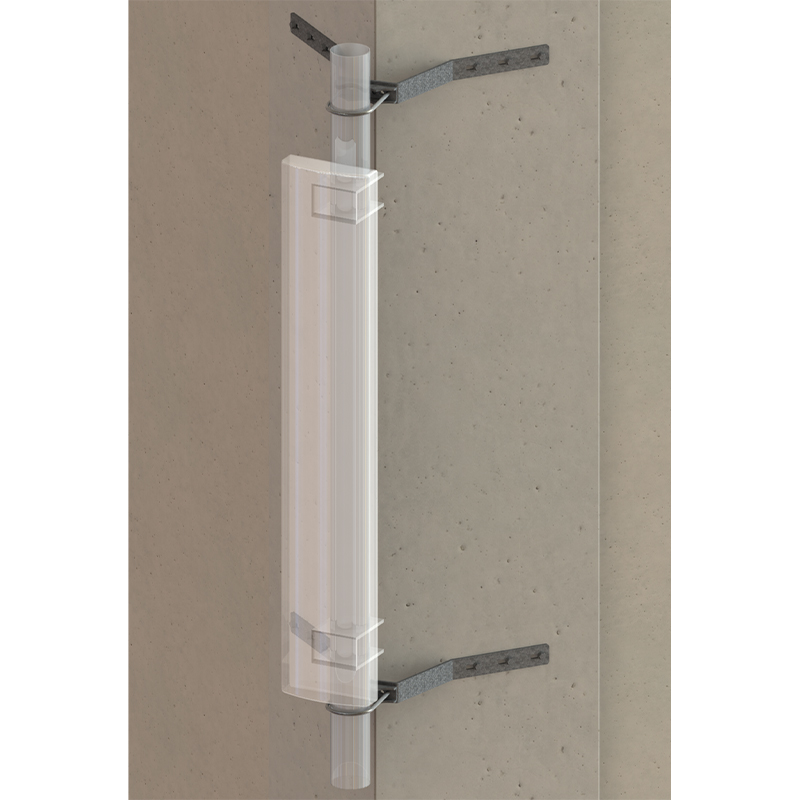

Designed for mounting a circular offset member at the corner of a wall. This kit can be mounted either directly to brick or concrete walls, or using through-mounts with back-plates.
U-bolt kits to fit the whole range of offset members are included.

Order Information

Please use this link for regional contact information, quoting article number 43692.

CAD-Block

To request CAD-Block for this kit, please e-mail
design@mafigroup.com

Technical Information

Offset member

Circular:
Ø 60.3 - 114.3 mm
Ø 2.4 - 4.5"

Performance

Ultimate transient man-load: 2.4 kN
Max. resisting torque per single bracket: 462 Nm
Load capacity: 100 kg (220 lb)
Minimum offset: 124 mm (4.9")
Maximum offset: 155 mm (6.1")

Download

Data Sheet
Mounting Description
